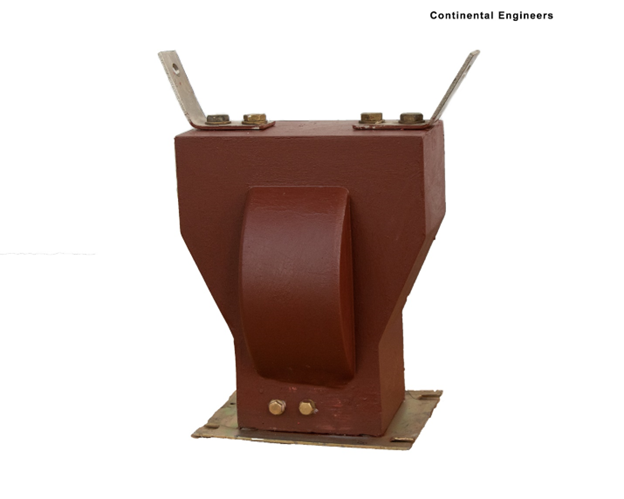

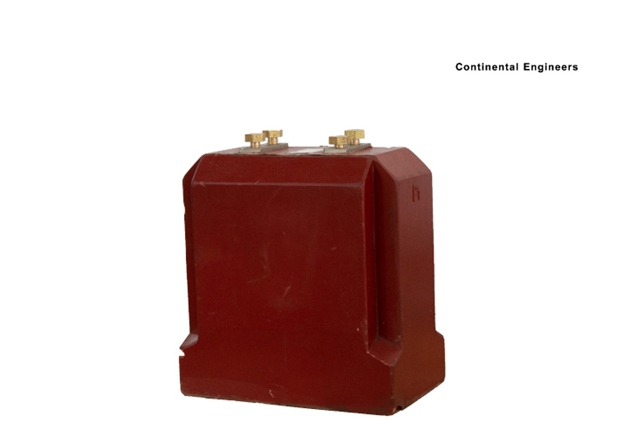

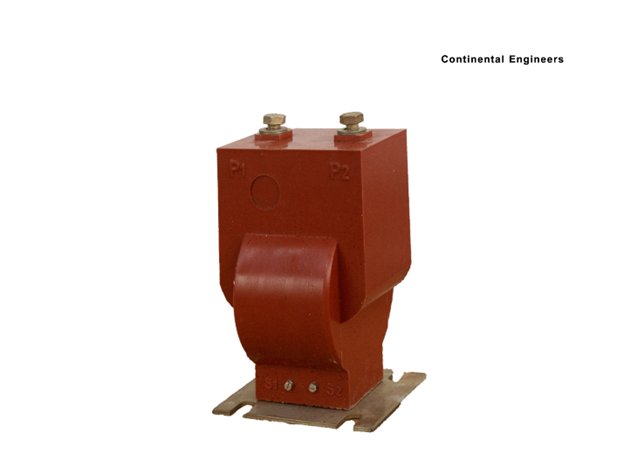

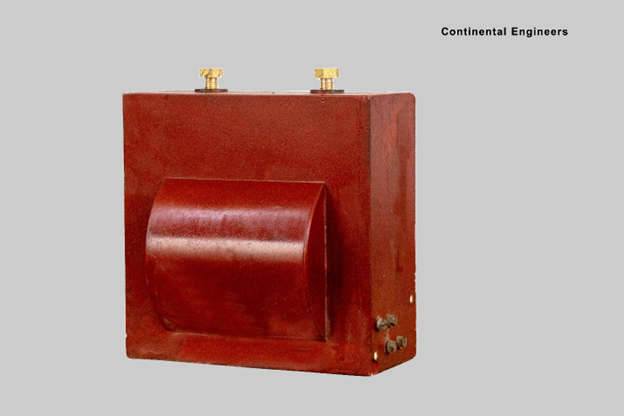

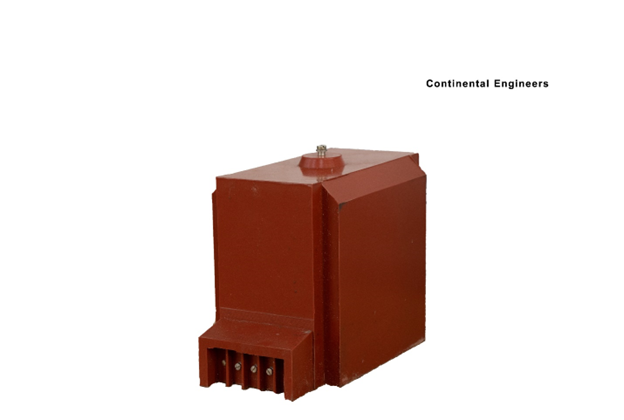

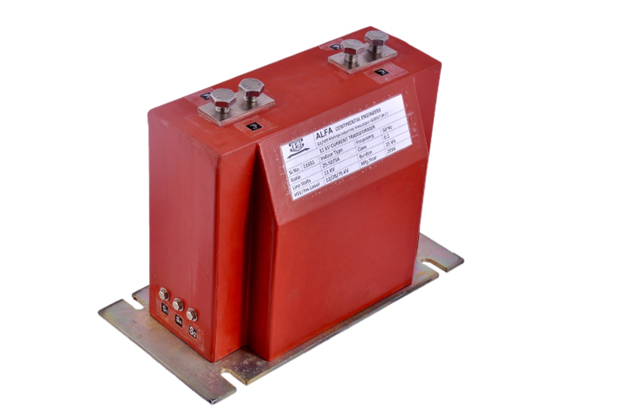

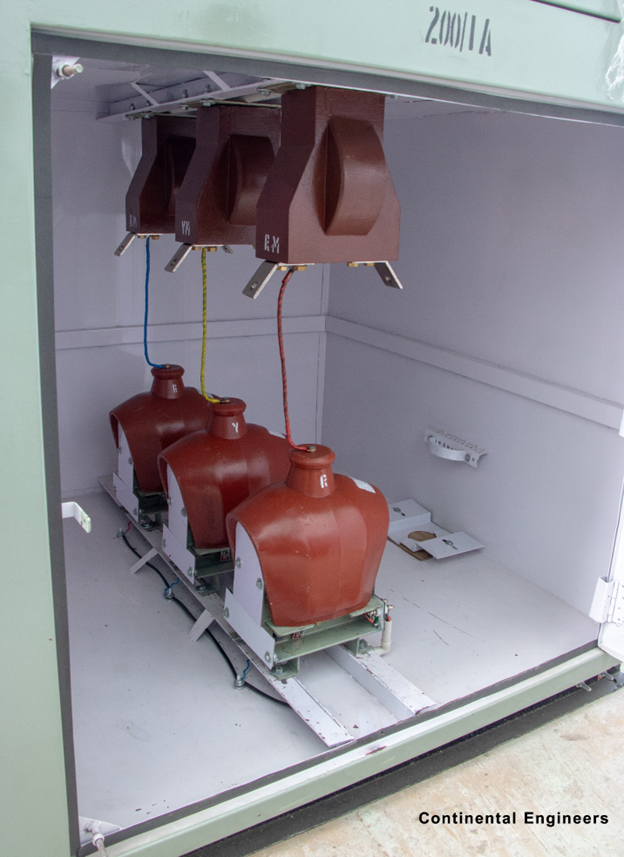

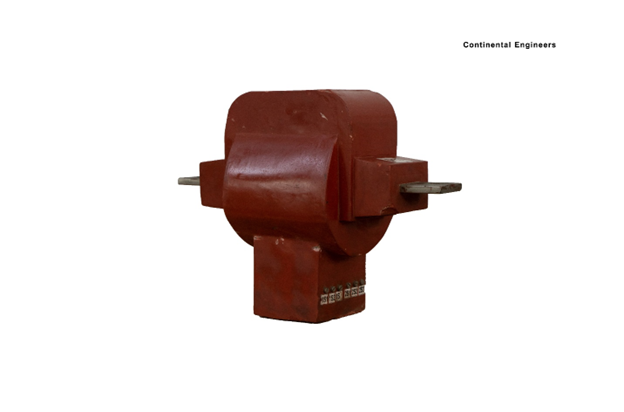

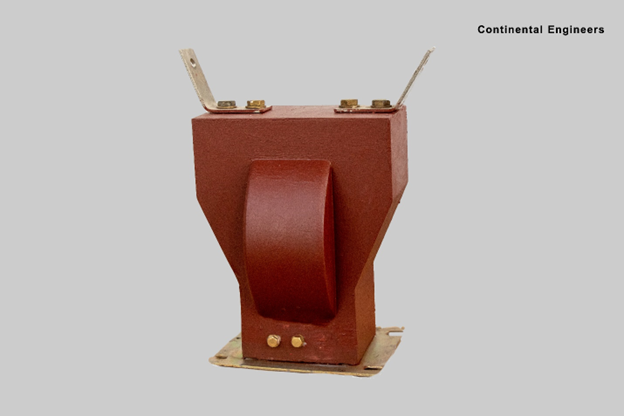

Continental Engineers offers a full range of Instrument Transformers Instrument Transformers for all your industrial and commercial applications. Designed and built using the most advanced technology and machinery, we ensure reliability and durability evenly matched by efficiency.
| Construction | Resin Cast |
|---|---|
| Type | Cycloaliphatic Resin |
| Primary Current | From 15A to 600A, 2 X 15A, 2 X 50A, 2 X 150A, From 50A to 600A, 2 X 100A And 2 X 150A |
| Secondary Current | 5A, 5A, 5A, 5A, 5A, 5A And 5A |
| Number of Secondaries | 1 ( Metering ) |
| Connection Type | Primary Reconnection |
| Frequency | 50 Hz |
| Rated Highest Voltage | 15.5 kV And 36.5 kV |
| Rated Power Frequency Withstand Voltage | 34 kV And 70 kV |
| Rated Lightning Impulse Withstand Voltage | 110 kV And 200 kV |
| Standard | IEEE C57.13 and As per client requirement |
| Accuracy Class | 0.3 And 0.3 |
| Burden | B-0.5 And B-2 |
| Short Time Thermal Current | 15kA for 3 Sec And 20 kA for 3 Sec |
| Construction | Resin Cast |
|---|---|
| Type | Cycloaliphatic Resin/td> |
| Primary Voltage | 11000 / Root 3V, 11000 V, 33000 V, 33000 / Root 3V And 33000V |
| Secondary Voltage | 240V, 240V, 240V, 240V, 240V |
| Number of Secondaries | 1 ( Metering ) |
| Frequency | 50 Hz |
| Rated Highest Voltage | 15.5kV, 17.5kV, 36kV And 36.5kV |
| Rated Lightning Impulse Withstand Voltage | 110 kV, 95 kV, 170 kV And 200 kV |
| Standard | IS2705, IS3156, IEC61869-1 & 61869-2 , IEC 60044-1 & IEC 60044-2 , IEEE C57.13 - 2008 , IEEE C57.13 - 2016 |
